Precision Multimeter - 6.5+ Digits of Resolution

What Makes It Awesome?

✅ 32-bit Sigma-Delta ADC with > 26 bits ENOB — insane resolution for voltage measurements

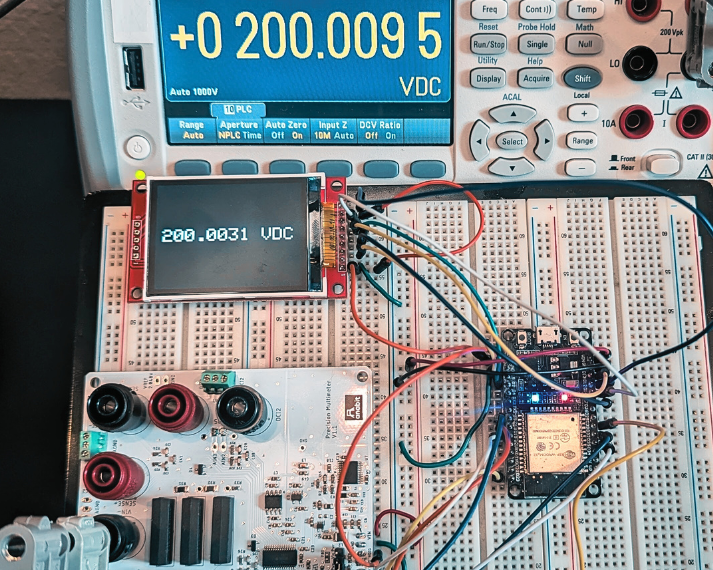

✅ Auto-ranging up to ±200V, fully software-controlled

✅ Built-in multi-range current source — make precision resistance measurements without extra hardware

✅ Second 24-bit Sigma-Delta ADC — perfect for 4-wire resistance or custom measurements

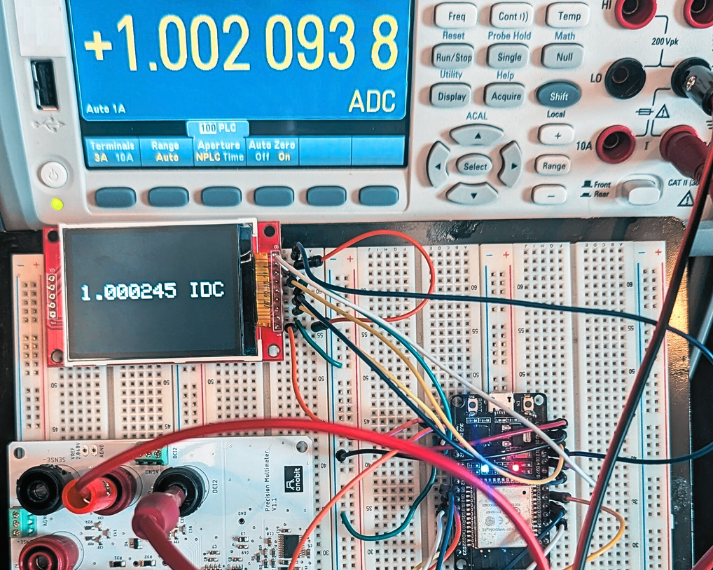

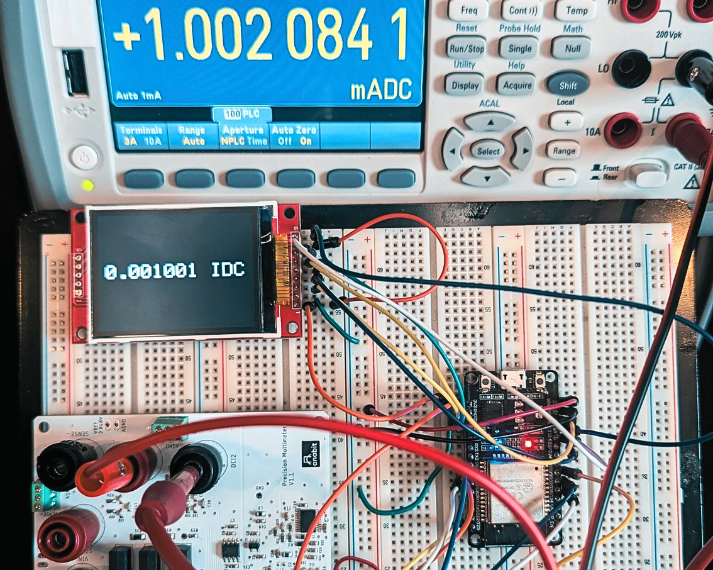

✅ High-res precision shunt — measure current from 2 amps down to milliamps with ease

✅ Ultra-stable 2.5V reference, with optional 2.048V version for even tighter tolerances

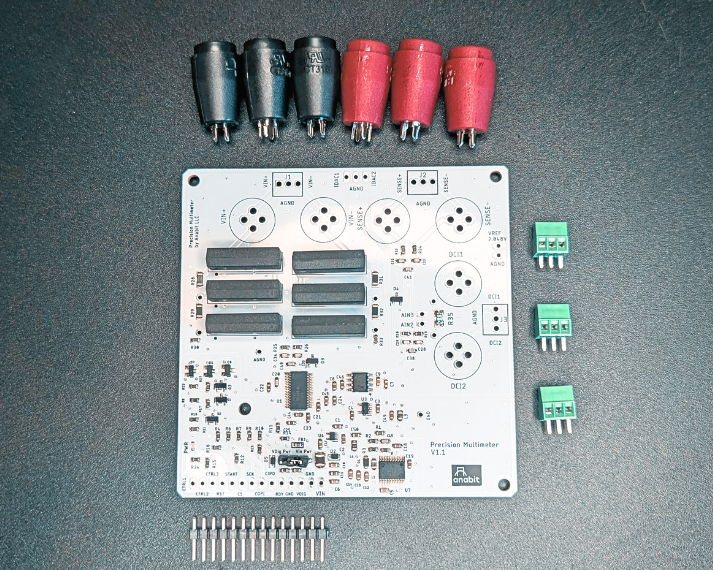

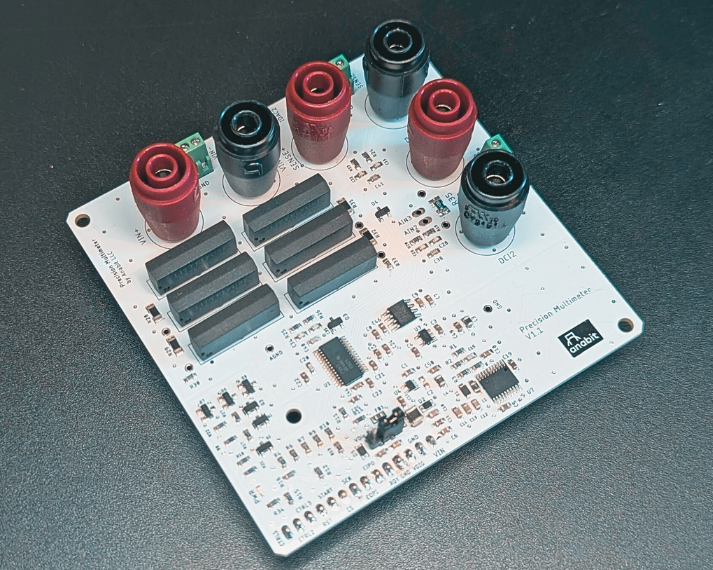

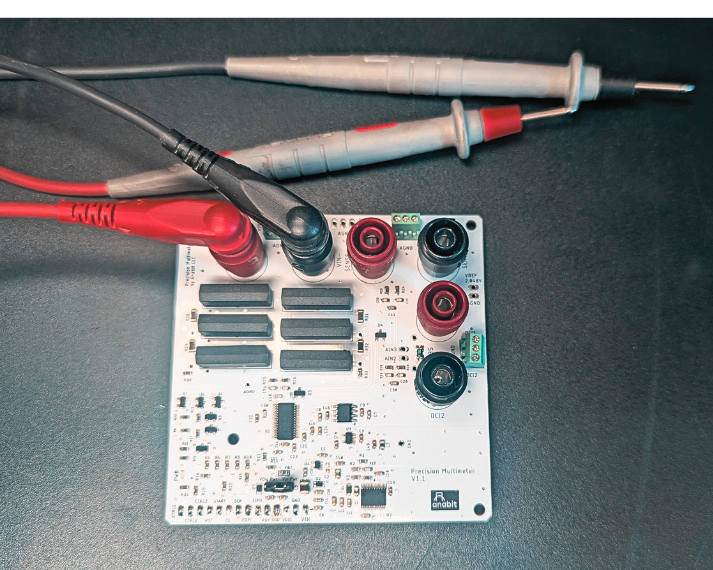

✅Make measurement connections using the standard banana plugs or optional screw terminals

✅Jumper that allows you to select single power source mode or two power source mode (one for digital and one for analog). For instance, this allows you to use 3.3V digital power and 5V for analog power.

32 bit ΔΣ ADC with up to 26.9 ENOB with built-in programmable gain amp, with second separate 24 bit ADC

Sample rates range from 2.5 SPS to 38.4 KSPS

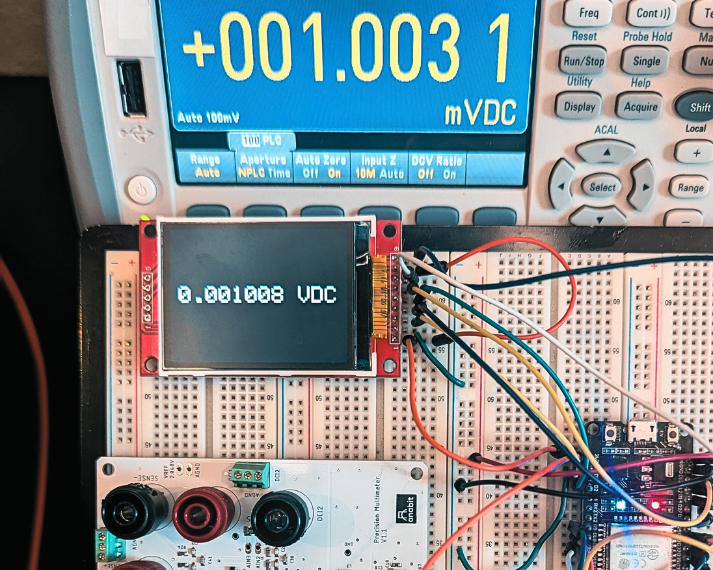

Accuracy and resolution that allows you to make measurements in to micro volt realm

Built-in hardware and software calibration features to improve accuracy

Runs off of 5V or 3.3V power source. Depending on configuration can consume up to 100mA current

Three digital logic inputs to control precision relays to control voltage measurement readings
