SymmBoost Converter - Bipolar Power Source +/- 9V, +/- 15V, +/- 24V

Variants / outputs (from 5 V in) — ± 24 V, ± 15 V, ± 9 V dual rails; independent precision EN pins per rail;

Protection features — Under voltage lock out, over current / short circuit protection, over voltage protection

The DC to DC converters run off a fast 2.4MHz clock enabling great power conversion efficiency. With good power efficiency comes less conversion heat which enables the small form factor of the design

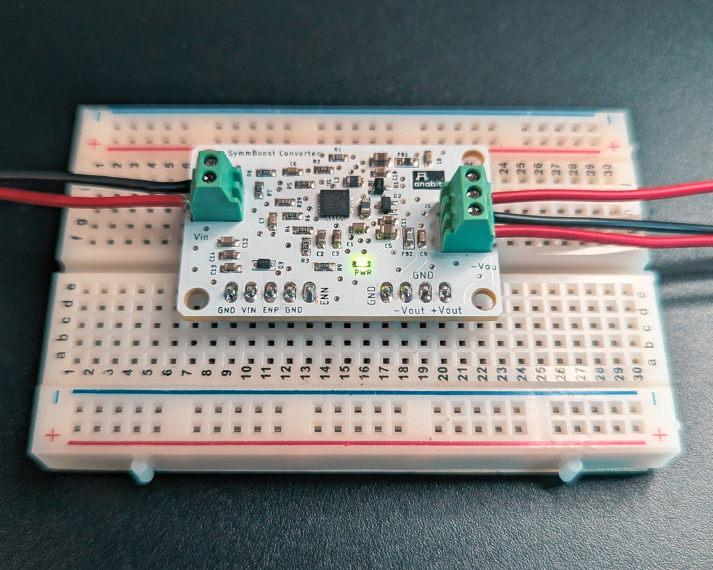

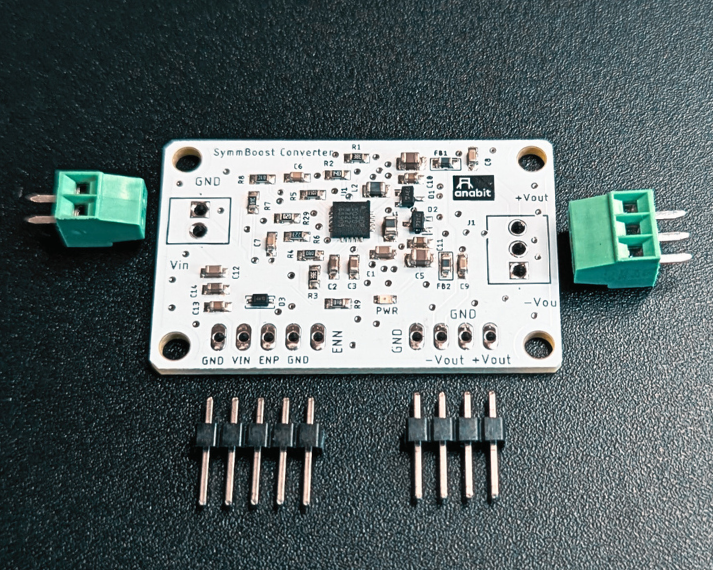

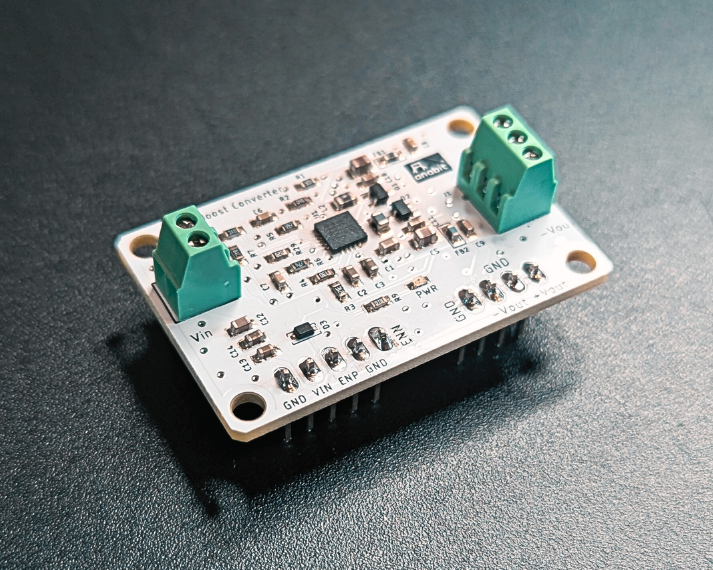

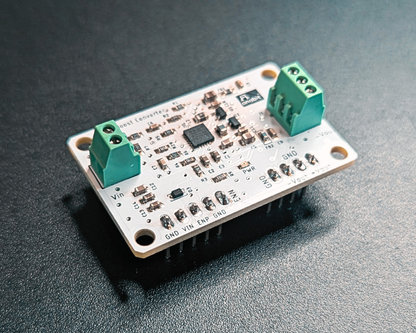

Power input and outputs can be accessed through 2.54mm pin holes or from screw terminals. Output enable pins are only accessed through pin holes.

Note: Since this is a boost converter and a 5V input voltage is "boosted" to two higher voltages output rails the 5V input power source needs to be able to source currents over 1A to full output loads. See specifications and product tutorial for more information

Electrical Specifications and limits (VIN = 5 V)

±24 V module:
--> Max output current (cont.): +24 V: 50 mA, −24 V: 25 mA
--> Max 5 V input current (both rails at max): ≈ 450 mA
--> -24 V rail noise (20 MHz BW): 30 mVpp at max load
--> +24 V rail noise (20 MHz BW): 50 mVpp at max load

±15 V module:
--> Max output current (cont.): +15 V: 0.1 A, −15 V: 50 mA
--> Max 5 V input current (both rails at max): ≈ 0.7 A
--> -15 V rail noise (20 MHz BW): 20 mVpp at max load
--> +15 V rail noise (20 MHz BW): 50 mVpp at max load

±9 V module:
--> Max output current (cont.): +9 V: 0.3 A, −9 V: 0.1 A
--> Max 5 V input current (both rails at max): ≈ 1.0 A
--> -9 V rail noise (20 MHz BW): 20 mVpp at max load
--> +9 V rail noise (20 MHz BW): 70 mVpp at max load

Form factor:

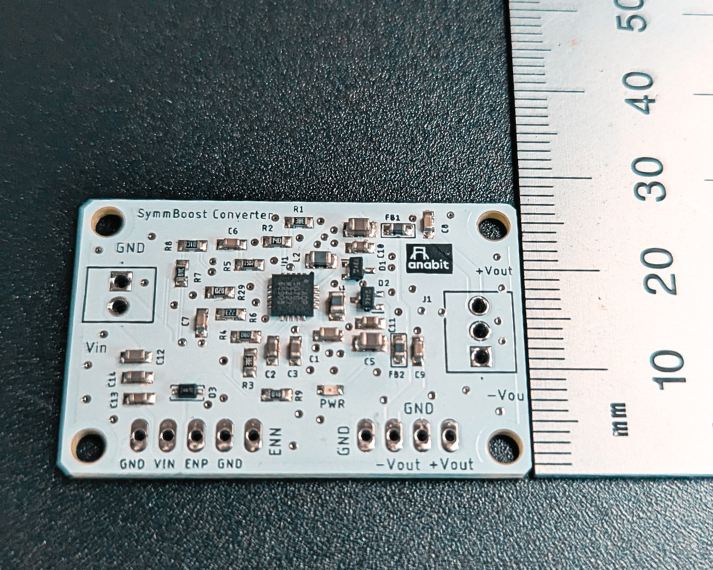

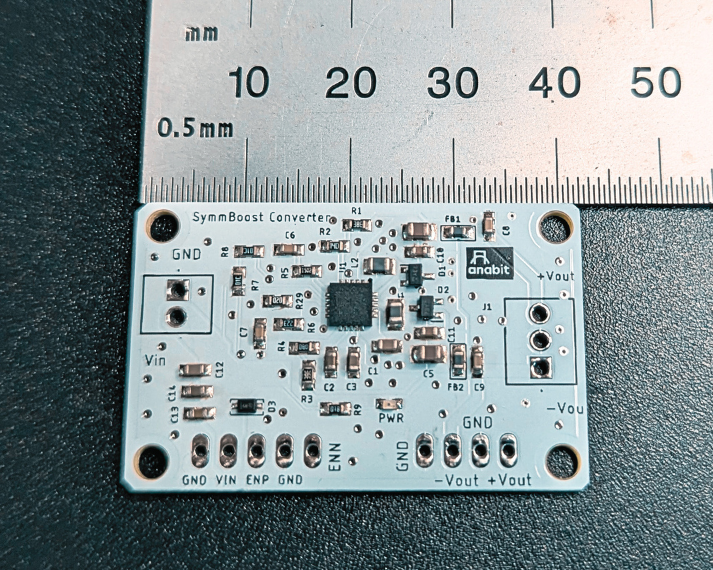

--> 41.5 mm × 27 mm product dimensions
--> Pin spacing 2.54 mm
--> screw terminal spacing 2.54 mm
--> 4x Mounting holes 3 mm diameter
